When One Showerhead Isn't Enough — and the Plumbing Doesn't Know It Yet
You've decided to add a handheld showerhead to your existing setup. Maybe it's for rinsing a toddler, reaching a sore shoulder, or just wanting the flexibility a fixed overhead can't give you. You buy the handheld, you bring it home, and then you stare at your existing shower arm wondering: how is this actually supposed to work? If you want both your original overhead showerhead and the new handheld to function — and to be able to switch between them, or run both simultaneously — a standard two-way diverter isn't going to cut it. That's exactly the problem a 3 way shower diverter valve is designed to solve.
The good news is that a 3 way shower diverter valve DIY install is genuinely approachable for most homeowners. You don't need to open the wall, you don't need to sweat copper pipe, and in many cases the entire job takes under an hour. What you do need is a clear understanding of what the valve actually does, where it goes, and what can quietly go wrong if you rush through the details. This guide walks through all of it.
What a 3 Way Shower Diverter Valve Actually Does
A standard tub spout diverter does one thing: it diverts water from the tub spout up to the showerhead. Press the knob, water goes up. Release it, water comes back down. Simple, but limited — there's no way to choose between two separate shower outlets.

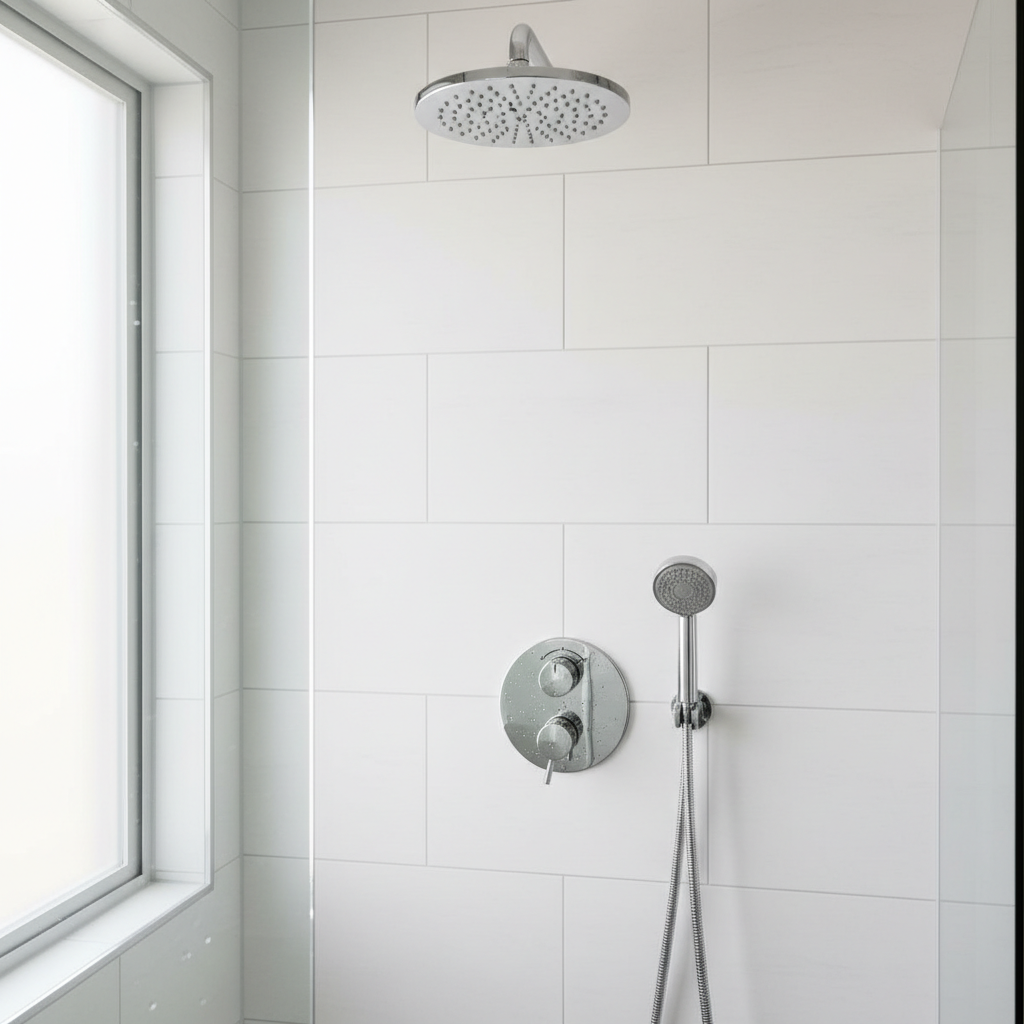

A 3 way shower diverter valve adds a third path. It sits between your water supply and your two shower outlets, and the handle position controls which outlet receives flow. Depending on the model and handle position, you can send water exclusively to your overhead showerhead, exclusively to your handheld, or split flow to run both at once. That third option — running both simultaneously — is what truly separates a 3 way valve from a simple 2 way diverter, and it's what makes the upgrade worthwhile for most people.
Most 3 way shower diverter valves connect via standard threaded fittings — typically 1/2 inch NPT (National Pipe Taper) threads — which means they're designed to integrate with the supply pipe already behind your shower wall without requiring new rough-in plumbing. The valve mounts on the shower wall, connecting to the existing shower arm port on one side and routing out to each showerhead on the other two ports. Understanding this geometry upfront makes the install sequence much less confusing.
What You'll Need Before You Start
One of the most common reasons a DIY plumbing project stalls is discovering mid-job that you're missing a fitting, a sealant, or the right wrench. Avoid that by gathering everything before you turn off the water. Here's what a typical 3 way shower diverter valve DIY install requires:
- The diverter valve itself — confirm the thread size matches your existing shower arm (most residential showers use 1/2 inch NPT)
- Teflon tape (PTFE tape) — you'll use this on every threaded connection; buy a fresh roll even if you have an old one, because dried or torn tape is a common source of drips
- Adjustable wrench or channel-lock pliers — two pairs are ideal so you can hold one fitting steady while tightening the other
- A cloth or towel — to protect chrome or brushed finishes from wrench jaws
- Thread sealant or pipe joint compound (optional but recommended) — for extra insurance on joints that will live permanently behind a shower escutcheon
- Shower hose for the handheld — usually sold separately; verify it's the right length for your setup
- Bucket or towels — residual water will drain from the pipes when you disconnect the shower arm
It's also worth noting that some 3 way valves come with integrated wall brackets or slide bars for the handheld unit. If yours doesn't, you'll need to decide where to position the handheld holder and whether it needs to be wall-anchored into tile — which is a separate mini-project that involves a tile drill bit and appropriate anchors.
Step-by-Step: How to Install a 3 Way Shower Diverter Valve
Step 1 — Shut Off the Water (the Right Way)
You don't always need to shut off the main water supply to the whole house. Many homes have individual shutoffs under sinks or at the shower's supply manifold. If you're not sure, shut off the main. Then turn on the shower in its hottest position and let it run until the pressure drops completely — this drains the supply lines and minimizes the amount of water that spills when you disconnect fittings. Keep your bucket handy anyway.
Step 2 — Remove the Existing Shower Arm (If Needed)
In most 3 way diverter setups, the valve installs between the wall's existing shower arm fitting and your showerhead. That means you first unscrew the showerhead from the shower arm, then unscrew the shower arm from the wall flange. Shower arms are typically threaded into a drop-ear elbow or nipple inside the wall. They can be corroded in place — use a steady counterclockwise rotation and avoid yanking, which can torque the pipe inside the wall and cause a much bigger problem. Wrap the arm with a cloth before gripping it with pliers to protect the finish.
Once the arm is out, clean the threads on the wall fitting with a dry cloth. Old thread compound or tape residue left on the fitting will interfere with a good seal on the new connection.
Step 3 — Plan Your Port Connections
Before you thread anything together, hold the 3 way valve in position on the wall and think through where each port points. Most valves have one inlet (connecting to the shower arm or wall supply) and two outlets (one for the overhead head, one for the handheld). The inlet is usually the bottom or back port. The outlet ports need to point in directions that make sense for your hose routing — one up toward the overhead showerhead position, one angled toward wherever your handheld holder will sit.
Some valves are fixed in orientation; others allow you to rotate the body slightly to aim the ports. Know which you have before you apply tape, because unwinding a taped joint to rotate the valve means starting the taping over.
Step 4 — Apply Teflon Tape to Every Threaded Connection
This is the step most DIY leaks trace back to skipping or rushing. Wrap PTFE tape clockwise around the male threads — the same direction you'll be screwing the fitting in — overlapping each pass by about half the tape width. Two to three wraps is standard for most shower connections. On the inlet side, which sees constant water pressure, I typically go three wraps. Don't stretch the tape so thin it tears; it should press firmly into the thread grooves.
If you're using a thread sealant compound in addition to tape, apply a thin, even layer over the taped threads. This combination is particularly good for connections that you won't be able to easily reach again once everything is installed and the escutcheon plate is back in place.
Step 5 — Connect the Valve to the Wall Supply
Thread the diverter valve's inlet port onto the wall fitting (or back onto the shower arm if your configuration uses the arm as an intermediary). Hand-tighten first, then use your wrench to snug it firmly — but don't over-torque. Brass fittings, which most quality diverter valves use, can crack or strip if you crank them too hard. The rule of thumb is hand-tight plus one to two full turns with the wrench. The fitting should feel solid with no wobble.
Check the valve orientation once it's snugged in. If it's not quite right, you can often adjust a quarter-turn without compromising the seal — but only before the sealant sets.
Step 6 — Connect the Showerhead Outlets
Attach the shower hose for your handheld to one outlet port, and attach the pipe or arm extension for your overhead showerhead to the other. Again, tape every thread, hand-tighten first, then wrench-tighten. For the overhead connection, you may need a short nipple or extension arm to position the showerhead at the right height — measure before you buy so you're not making a hardware store run mid-install.
The 3 Way Shower Diverter Valve is designed with standard 1/2 inch NPT threads on all ports, which means it connects directly to the vast majority of residential shower arms and handheld hoses without adapters.
Step 7 — Turn the Water Back On and Test
Before you reinstall any trim or escutcheon pieces, turn the water supply back on slowly and watch every connection point for 60 seconds. A small bead of water at a joint isn't always obvious immediately — it may take a few seconds for pressure to build and reveal a weep. If you see any moisture, shut the water off, dry the joint completely, and re-tape. Most first-attempt leaks on threaded connections are just tape that didn't seat fully.
Once you've confirmed no leaks at pressure, test each diverter position. Move the handle to the overhead position — only the overhead head should run. Move it to the handheld position — only the handheld should run. Move it to the center or combined position — both should flow. If the valve is passing some water to both outlets even when it should be sending all flow to one, check whether the valve has a pressure balance or check valve feature that needs adjustment; some models require a slight handle calibration after install.
Step 8 — Secure and Finish
Once everything tests clean, reinstall your escutcheon plate (the decorative cover around the valve body where it meets the tile). If the escutcheon doesn't sit flush against the tile, you may need a small bead of silicone caulk around its perimeter to seal the gap and prevent moisture from getting behind the wall. Use a bathroom-grade silicone — this is one spot where getting the seal right matters for long-term wall integrity.
Common Mistakes to Avoid
Even a straightforward 3 way shower diverter valve DIY install can go sideways in a few predictable ways. The most frequent issue is cross-threading — forcing a fitting onto threads at a slight angle. Cross-threading feels like it's tightening, but it's actually damaging both sets of threads and will leak. Always start by hand, feel for the threads to catch cleanly, and rotate slowly until the fitting runs smooth before picking up the wrench.
Another common error is failing to account for valve weight and leverage. A 3 way valve with two hoses or arms attached puts more lateral stress on the wall fitting than a single shower arm did. If your wall fitting feels at all loose in the wall, address that before loading it with a heavier assembly — a strap wrench around the pipe inside the wall (accessed through an access panel if you have one) can stabilize it while you tighten.
Finally, watch your thread count. Most US residential plumbing is 1/2 inch NPT, but older homes sometimes have 3/4 inch supply lines, and some imported showerheads use metric threads. If a fitting simply will not thread in despite looking like the right size, measure the thread diameter before forcing anything.
When a DIY Install Isn't the Right Call
A 3 way shower diverter valve DIY install is genuinely within reach for most homeowners who are comfortable with basic plumbing tasks. But there are a few situations where calling a licensed plumber is the smarter move. If your existing shower arm shows signs of significant corrosion or the wall fitting feels unstable when you grip the arm, you may have pipe deterioration behind the wall that a new valve won't solve. Similarly, if you're trying to add a second showerhead on a completely separate wall location — not just a handheld at a holder — that's a rough-in project requiring new supply lines, and that's a different scope entirely from what a surface-mount diverter valve addresses.
Checklist: Before, During, and After Your Install
Before you start: Confirm thread size on existing shower arm. Gather all materials including fresh Teflon tape. Plan port orientation before taping. Shut off water supply and drain lines.
During install: Clean old threads before applying tape. Wrap tape clockwise, 2–3 passes per connection. Hand-tighten first, then wrench-tighten 1–2 turns. Confirm valve orientation before final tightening. Never force a fitting that won't thread smoothly.
After install: Turn water on slowly and inspect all joints under pressure. Test all three diverter positions. Seal escutcheon perimeter with bathroom silicone if there's any gap. Run water for 5 full minutes and re-inspect before calling the job done.
A 3 way shower diverter valve DIY install is one of those bathroom upgrades that has a real, immediate payoff every single day — flexible water routing, a cleaner setup, and the quiet satisfaction of knowing you handled it yourself. Take the prep seriously, and the install itself is straightforward.
